Good morning,
While working with the tool “Intersection Point of Curve & Axis” I have encountered an error that had never happened before.
For the front pattern piece I was trying to make a gathering in the neckline part, for this I have drawn several parallels and used the “Intersection Point of Curve & Axis” tool.

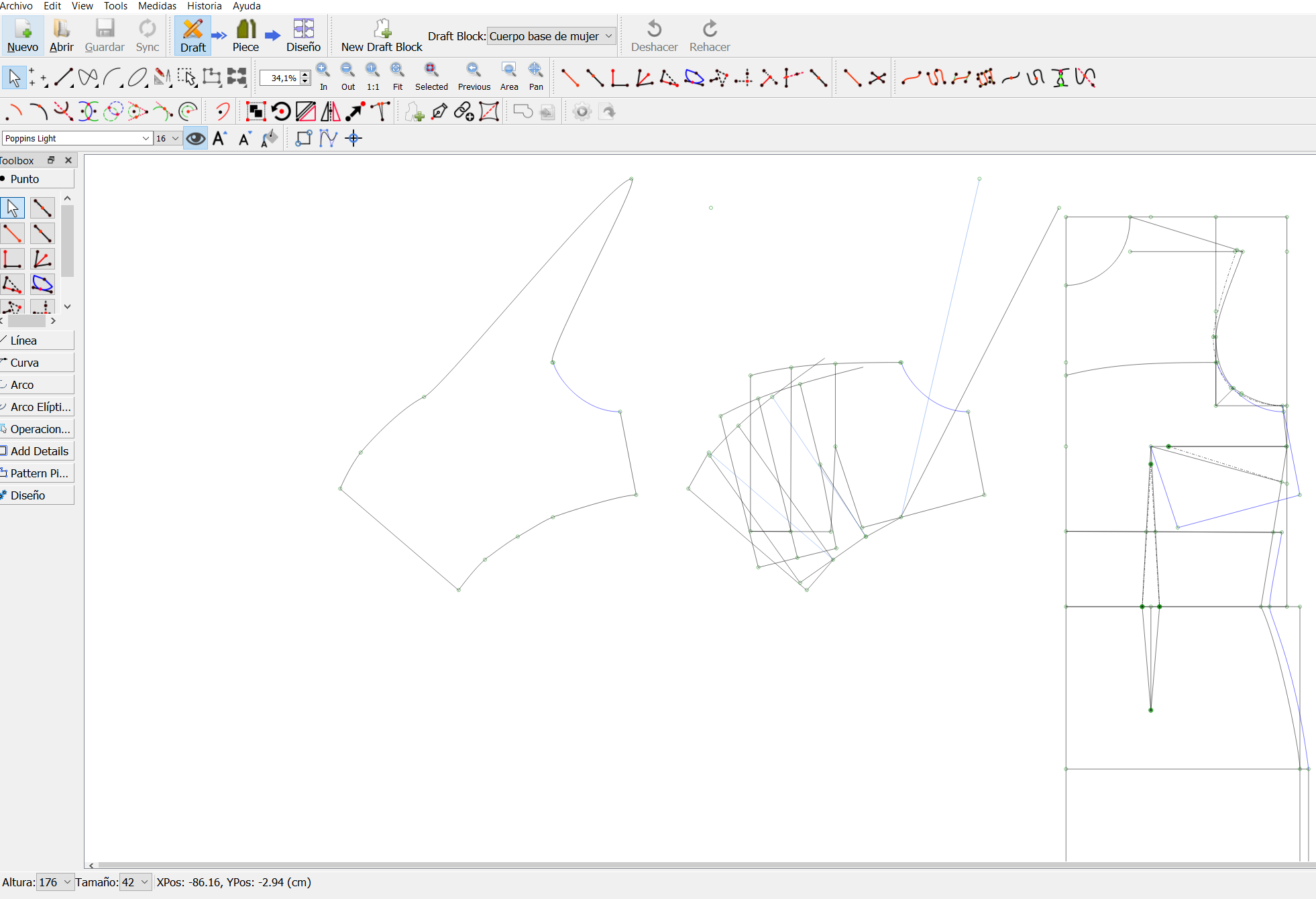

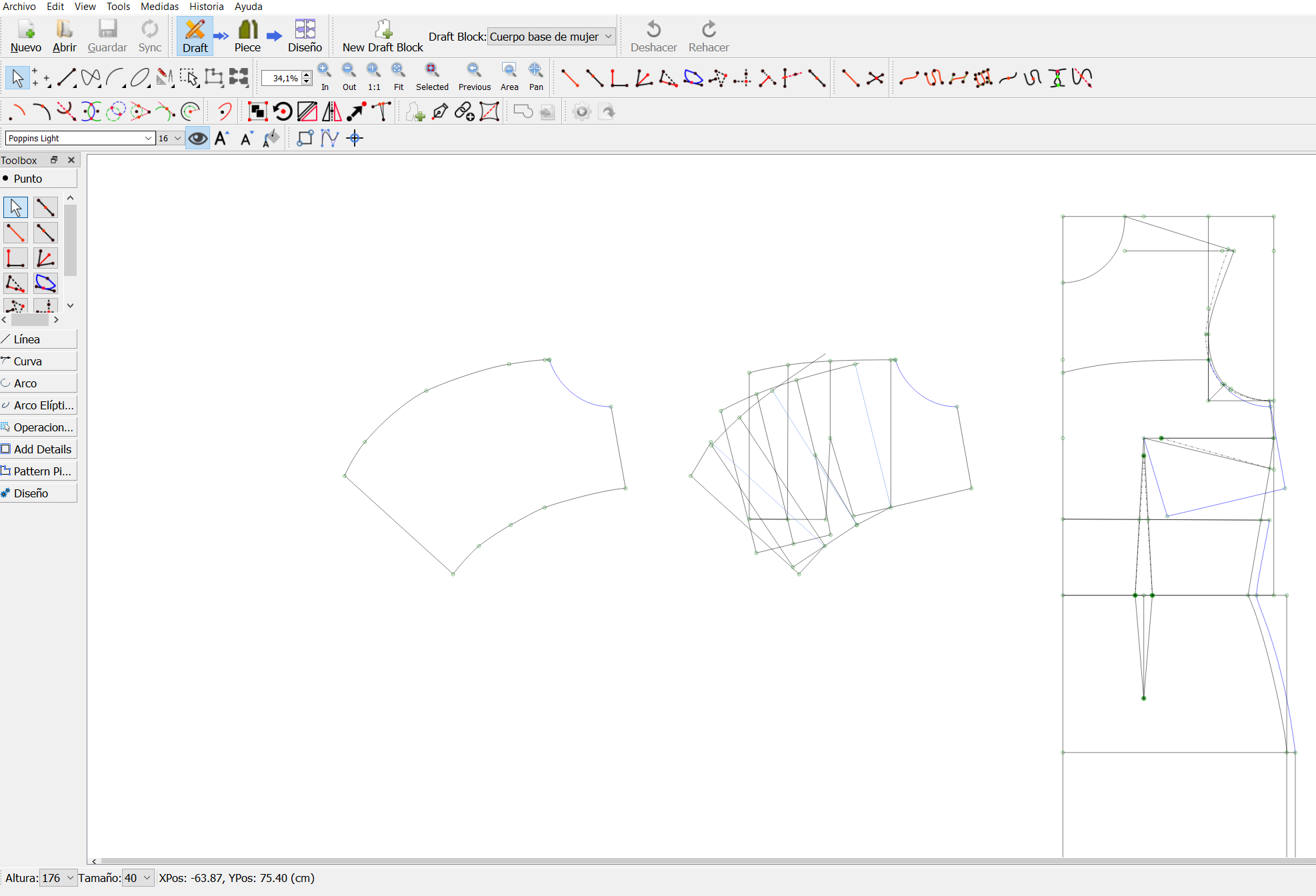

As you can see in this first image it works fine up to size 40, but from size 42 onwards the problem arises with the following dialog box
How can I solve it?
Thank you very much,
Esther.
Hi Ester,
It’s not an error per se, but rather a measurement or calculation in a formula has placed the intersection point past the bounds of the arc in question… therefore the application has to use some constant known point - the origin- (0,0) as a placeholder, or the pattern will crash.
If you post your pattern and any measurement file, maybe I or someone else here can take a look and see if there’s another solution to avoid the problem.
1 « J'aime »
Hi @Douglas
Thanks for responding so quickly, I was just about to post to close the thread. I have started from scratch and instead of doing it with a curve I have done it with a straight line.

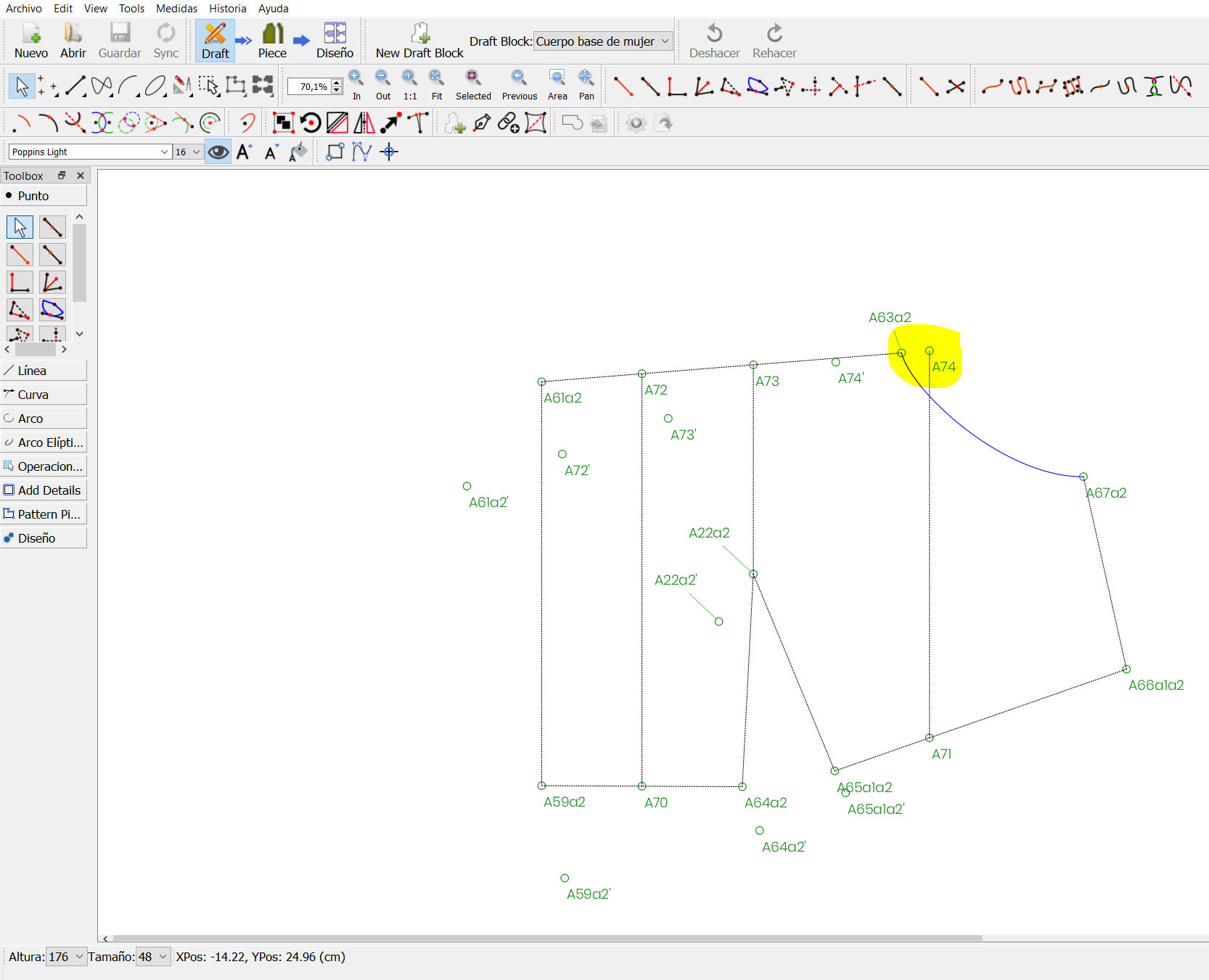

This way I have been able to check that with the value I had given to point A71, point A74 was out of the pattern.
When I changed the number and lowered it, everything worked normally.
Thank you very much,
Esther.
