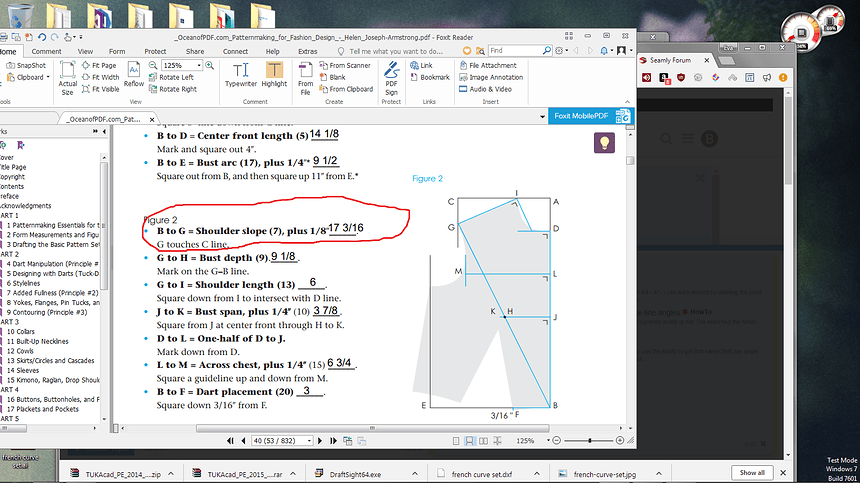

Hello and good day. I hope you are all well. I have reached an impasse in translating drafting instructions from paper into seamly2d. You see, I am following along in a book where I am to take a line of a specified measurement and draw it at a certain angle so that the line of specified measurement touches another line while still being that specific measurement. My question is how would I go about doing so? Any help would be greatly appreciated! Thank you for your time.
-Boo
1 Like
you can use the tool “point at intersection of arc and line” which can be found on the “Point” menu at the left side of the screen in the Seamly Program. This screenshot shows a red arrow pointing at the icon
That tool will allow you to find the point at which an arc will intersect a line. Study this example. This screenshot shows the history of the operations
1 Like
For the purpose of the example, the lengths of lines were arbitrary. I created point B at a 270 degree angle from the origin (point A) using the “point at distance and angle” tool. I created point C using the “point along perpendicular” tool. Line A_C is perpendicular to line A_B. I created line C_x1 using this tool as a perpendicular to line C_A.
It was not clear to me from the directions you posted whether you knew the slope of the line B_G. I assumed that you did not. I assume that when you use the tool, you will already have Points A, B, C, D, E, and F. I suggest that you create a line C_x1, where x1 is at an arbitrary distance from C. I suggest that you could use 0.25*Line_A_B to place point x1. That would be the length of line A_B divided by 4, and would make the pattern resizable for different sets of individual measurements. I suggest that you create point G by using the tool to find the point at which line C_x1 is intersected by the arc with Point B at the center and radius of 17 3/16 (which is 17.1875)
Good luck and feel free to ask for more help if this does not work as planned. @Grace actually has more experience using the tool for patternmaking than I. She and I have just been looking at a different thread here on the forum. I believe the tool will work for you, but there is a known problem with the tool under certain conditions. So, please speak up if it does not work.
3 Likes
simple-arc-intersect.val (1.2 KB) here is the pattern file that contains the example I just described for you
2 Likes
Of course, the one tool I didn’t try!! Ugh, oh my gosh you are a true life saver! Thank you so much for your time and effort, it means so much to me!
-Boo
3 Likes
Hi Kmf! Thank you for the explanation! I stumbled upon the exact problem. I work with the same pattern system. However, 17 1/8 is the length of BG. We only know the length of BG and the fact that it needs to intersect C x1. How would you proceed in that case? Thank you!
3 Likes
The exact same way, only your radius will be 17.125 or (17+1/8) instead of (17+3/16)
1 Like
Hi Pneumrian! It makes sense!
Thank you for the answer!
2 Likes
Hi! My challenge is a bit different. Is there a tool that can determine the height of a perpendicular line to intersect another line given a length?
2 Likes
Yes, there are tools for this:
And:
However, each works slightly differently, so without the actual context, I’d suggest using the Arc tool
to intersect the line at a distance from point and then use the Intersect Arc and Line tool to place the point:
1 Like
HI Grace and thank you, always! the line Im trying to draw/draft would be the line J_K. It has a value of half the bust span, perpendicular to centerfront, and the point should “land” on LineB_G. I hope its OK i just grabbed a photo from the earlier question from Boo.
1 Like
I just worked around by: measuring along B_E and squared up to intersect line B_G.
2 Likes
Ah, Helen Josepth Armstrong.
Yes, after creating H from G, then you create J from H at right-angles to A-B line - you can use the Point - Intersect Line & Axis tool here. The it’s a very simple Point - On Line tool at the distance of the half bustpoint to bustpoint measurement to K.
2 Likes
At the momment I’d concur with this as the Length to line (formerly known as the Shoulder tool) has some issues and quirks if you don’t know exactly what the tool is doing. It has a built in constraint to account for a “shoulder to shoulder” measurement which can be confusing if one is not aware of that fact. It’s currently one of my “on the side” features I was working on fixing -which I’ll get back to once I we’ve got a working Marker feature.
3 Likes
